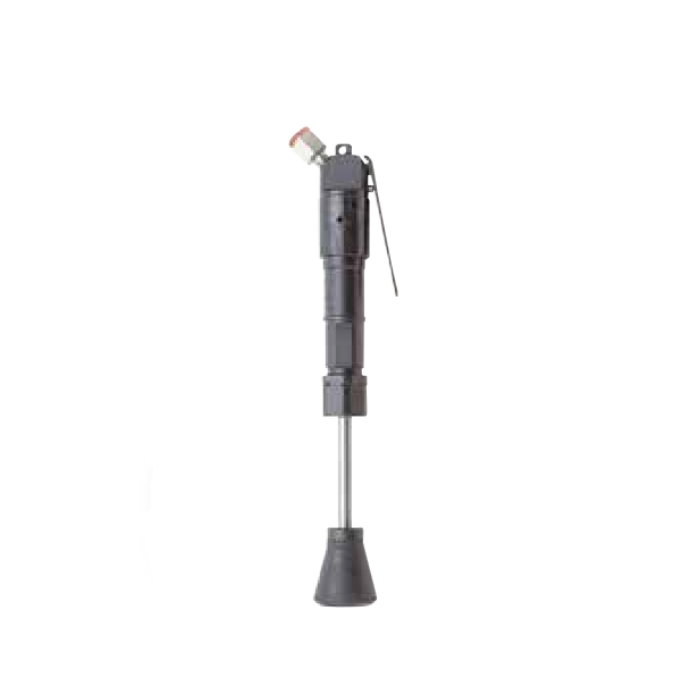

Toku tampers are ideal for compacting backfill for trenches and compacting soil around foundations and other structures.
| MODEL | PISTON DIAMETER mm | PISTON STROKE mm | BLOW PER MIN. b.p.m | NET WEIGHT kg | NET WEIGHT lb | OVERALL LENGTH mm | BUTT DIAMETER mm | AIR CONSTRUCTION m3/min | AIR CONSTRUCTION c.f.m | HOSE SIZE mm | AIR INLET SIZE PT | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TB-00G | 18 | 50 | 1600 | 1.7 | 3.7 | 280 | 51.5 | 0.25 | 8 | 12.7 | 3/8 | ||
| TB-0G | 22 | 65 | 1000 | 2.7 | 5.9 | 395 | 54 | 0.3 | 9.6 | 12.7 | 3/8 |
| MODEL | TB-00G, TB-0G |
|---|---|
| PISTON DIAMETER mm | 18, 22 |
| PISTON STROKE mm | 50, 65 |
| BLOW PER MIN. b.p.m | 1600, 1000 |
| NET WEIGHT kg | 1.7, 2.7 |
| NET WEIGHT lb | 3.7, 5.9 |
| OVERALL LENGTH mm | 280, 395 |
| BUTT DIAMETER mm | 51.5, 54 |
| AIR CONSTRUCTION m3/min | 0.25, 0.3 |
| AIR CONSTRUCTION c.f.m | 8, 9.6 |
| HOSE SIZE mm | 12.7, 12.7 |
| AIR INLET SIZE PT | 3/8, 3/8 |
