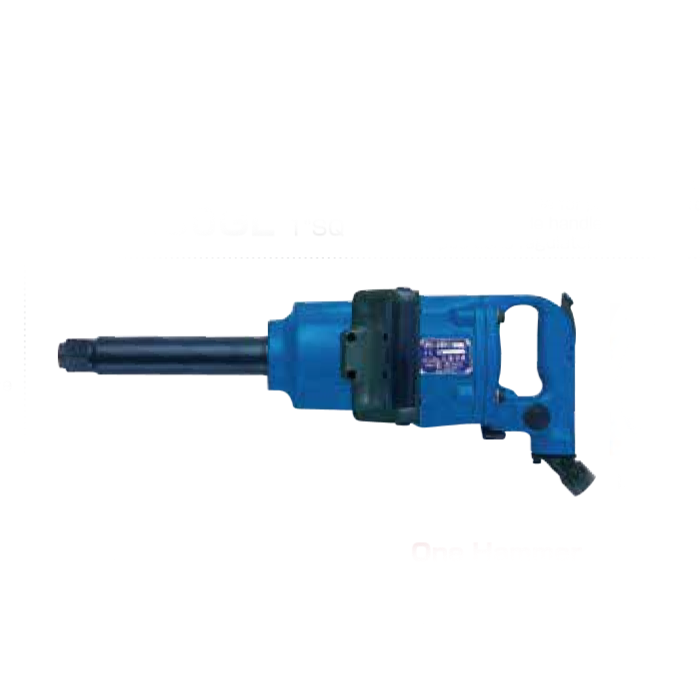

Short anvil shank type MI3800GS available
Ideal for maintenance of trucks and truck tires
2 Steps throttle for precise control
Elastomer side handle grip
4 Positions regulator
| MODEL | Drive (in) | Bolt Size (mm) | Torque Range (kg.m) | Max Torque (kg.m) | Net Weight (kg) | Overall Length (mm) | Center Height (mm) | Free Speed (rpm) | Air Cons Free (m3/min) | Air Cons Load (m3/min) | Air Inlet (PT) | Hose Size (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MI-3800GL(EL) | 1 | 38 | 50-150 | 200 | 10.2 | 504 | 55 | 4700 | 1.6 | 1.0 | 1/2 | 1/2 |
| MODEL | MI-3800GL(EL) |
|---|---|
| Drive (in) | 1 |
| Bolt Size (mm) | 38 |
| Torque Range (kg.m) | 50-150 |
| Max Torque (kg.m) | 200 |
| Net Weight (kg) | 10.2 |
| Overall Length (mm) | 504 |
| Center Height (mm) | 55 |
| Free Speed (rpm) | 4700 |
| Air Cons Free (m3/min) | 1.6 |
| Air Cons Load (m3/min) | 1.0 |
| Air Inlet (PT) | 1/2 |
| Hose Size (in) | 1/2 |
